Level 4 12 M3 (1500-watts-RMS)-DVC-2OHM

Original price was: $383.99.Current price is: $98.99.

Safeguard Your Shopping Experience

Free 1 year warranty period

Discover a world of quality products.

Quality You Can Count On

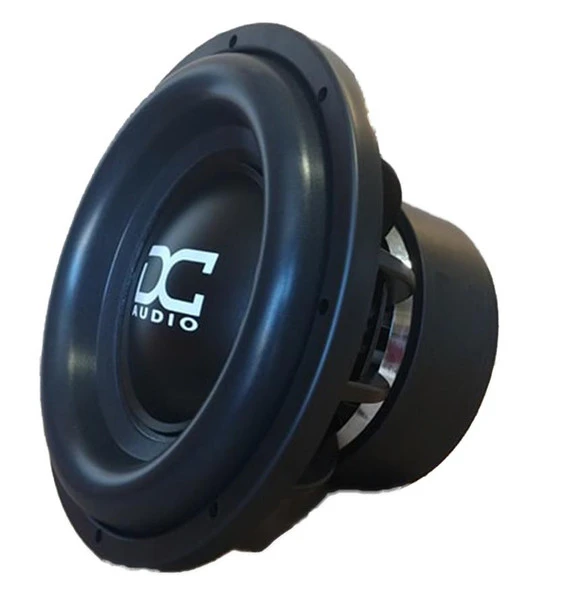

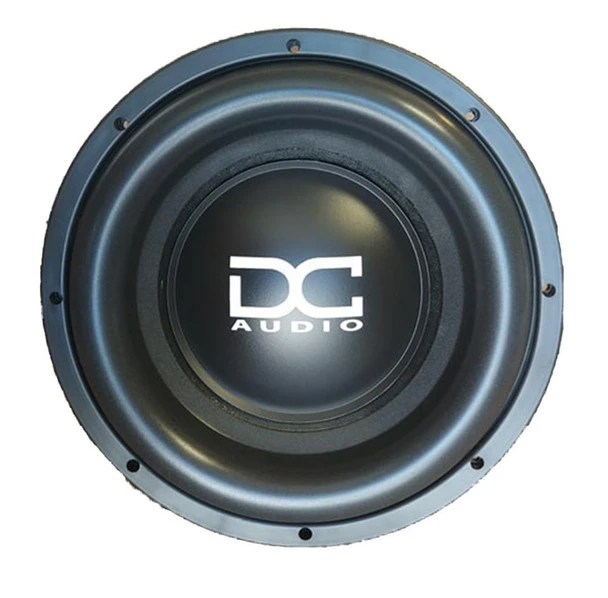

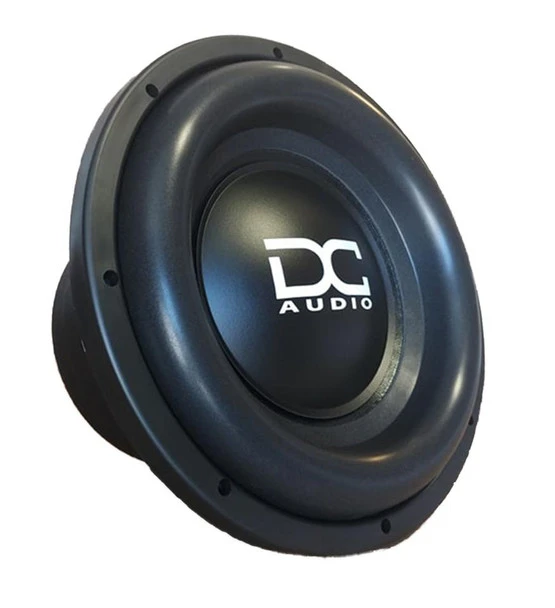

DC Audio Level 4 12 inch m3 Dual 2 ohm Subwoofer :

The Level 4 m2 was designed to take even more power and get even louder than the m1. With fantastic power handling and smashing lows its hard to beat.

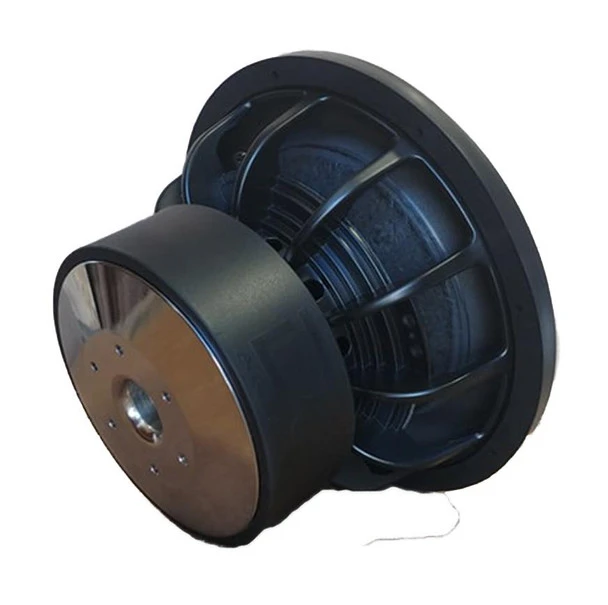

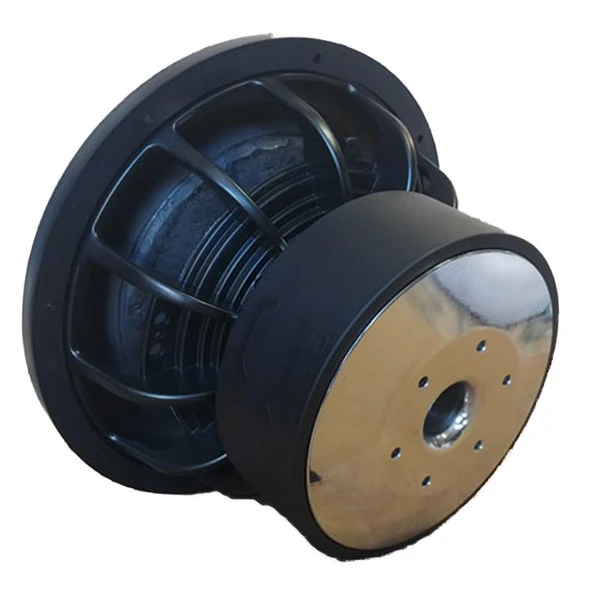

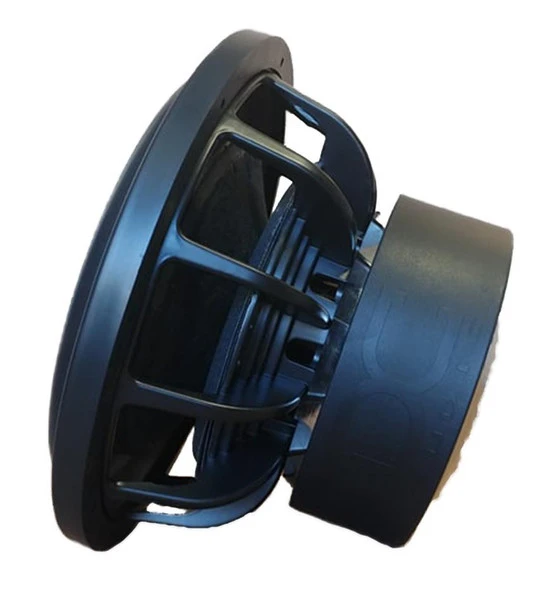

The Level 4 sub is a large triple stacked motor with a chrome top plate and T yoke yielding 23.5mm of X-Max.

Furthermore, you get the upgraded triple progressive spiders, cone, surround, 3″ coil, cast basket, push terminals and upgraded lead wire sewn to the spider. This sub is rated at 1400w RMS and 2800w peak.

Sub Size	10″	12″	15″	18″
Mounting Depth	6.25″	6.75″	8″	9.5″
Mounting Hole Diameter	9.25″	11″	14″	16.75″
Outside Driver Diameter	11.0″	12.5″	15.7″	18.5″
Motor Width	7.75″	7.75″	7.75″	7.75″
Weight	32lbs	33lbs	33.5lbs	36lbs
VC Diameter	3″	3″	3″	3″
Displacement	.16³ ft	.18³ ft	.21³ ft	.26³ ft
Magnet Weight	29lbs	29lbs	29lbs	29lbs
Power Handling RMS/Peak	1400 / 2800	1400 / 2800	1400 / 2800	1400 / 2800
Impedance (Ohm)	D1 or D2	D1 or D2	D1 or D2	D1 or D2
Sd	324cm²	481cm²	823cm²	1217cm²
Vas	12.42 liters	27.38 liters	80.16 liters	175.29 liters
Cms	.085 mm/N	.085 mm/N	.085 mm/N	.085 mm/N
Mms	184.5 g	207.53 g	318.5 g	427.53 g
Fs	40.2 Hz	37.9 Hz	30.6 Hz	26.4 Hz
BL	19.18 NA	19.18 NA	19.18 NA	19.18 NA
Re	3.82 Ohm	3.82 Ohm	3.82 Ohm	3.82 Ohm
Le	3.78 mH	3.78 mH	3.78 mH	3.78 mH
Qms	7.77	8.24	10.2	11.82
Qes	.49	.52	.644	.746
Qts	.461	.489	.60	.701
Xmax	23.5 mm	23.5 mm	23.5 mm	23.5 mm
Ref SPL @ 1 watt	84 dB	86.4 dB	87.4 dB	88.2 dB
Suggested Sealed	.75³ ft	1³ ft	2.75³ ft	4³ ft
Suggested Ported	1.0³ ft	1.5³ ft	3.0³ ft	5.5³ ft
