M3 8 (600-watts-RMS)-DVC-4OHM

Original price was: $179.99.Current price is: $97.99.

Safeguard Your Shopping Experience

Free 1 year warranty period

Discover a world of quality products.

Quality You Can Count On

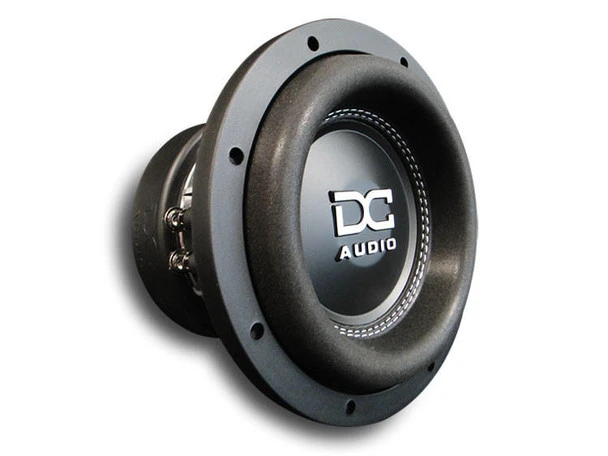

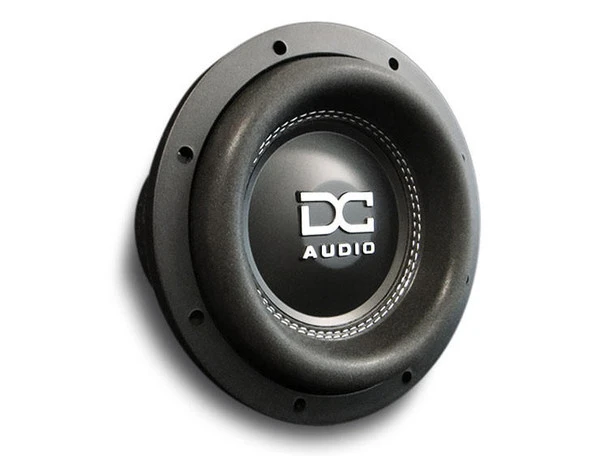

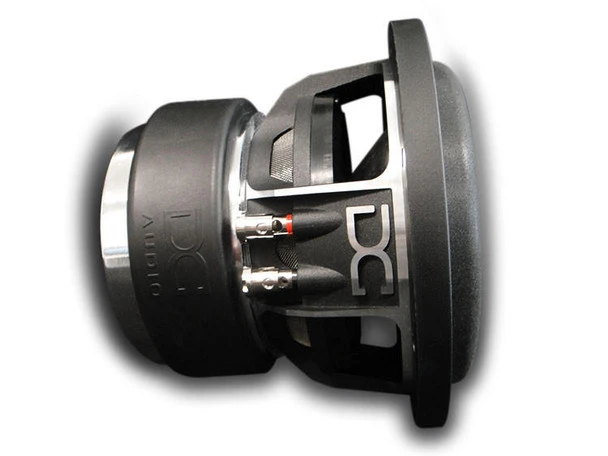

The m3 8 is an 8″ long X-Max subwoofer. Long hours in the R&D department is what it took to develop the newest version of our 8″ subwoofer.

We designed a tall roll stitched surround, oversized spiders, and a tall cast frame that allows for extreme amounts of cone travel. All of these newly designed parts allow for lower frequency reproduction.

The bolted down spaced spider design keeps it all linear. The m3 8 uses a gap cooled design to allow the 2″ copper coil to thermally take more power than other 2″ coil motors with the traditional pole venting.

Sub Size	8″
Mounting Depth	5.75″
Mounting Hole Diameter	7.25″
Outside Driver Diameter	8.5″
Weight	18 lbs
VC Diameter	2″
Displacement	.1³ ft
Magnet Weight	15 lbs
Power Handling RMS/Peak	600/1200
Impedance (Ohm)	D2/D4
Sd	201.93cm²
Vas	7.3L
Cms	0.135 mm/n
Mms	150.66 g
Fs	35.3Hz
BL	17.9 N/A
Re	6.28 Ohm
Le	5 mH
Qms	6.68
Qes	0.66
Qts	0.601
Xmax	18mm
Ref SPL @ 1 watt	78.7
Suggested Sealed
Suggested Ported	.75³ ft
