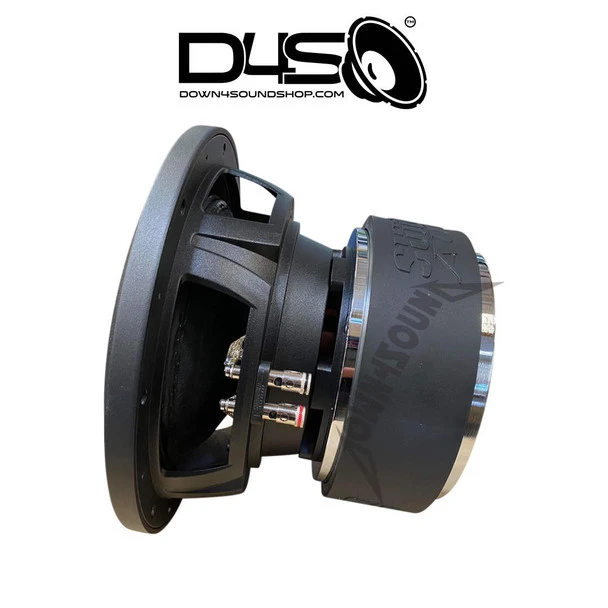

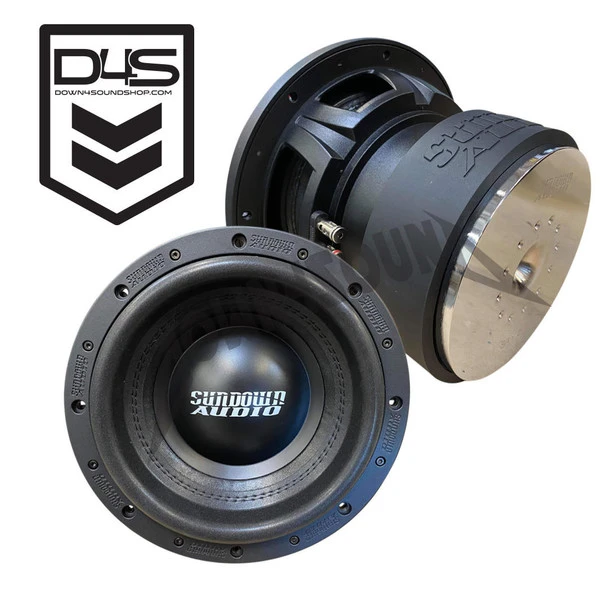

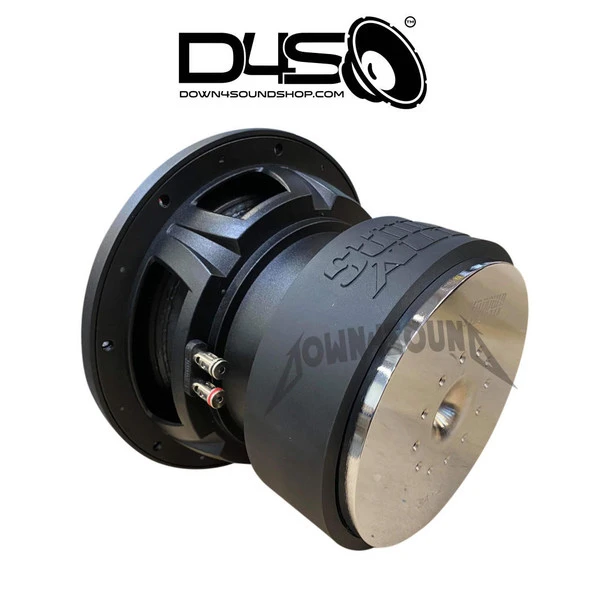

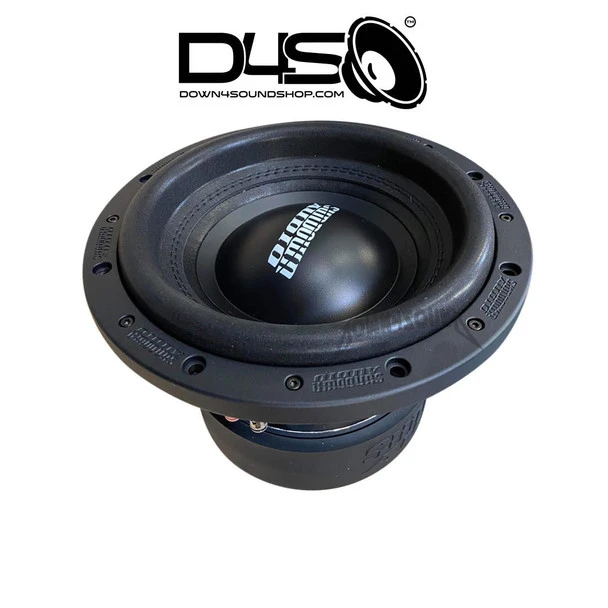

Sundown Audio SA 10 | Version 2 |Dual 2 OHM| 1000w RMS Version 2 Subwoofer
Since 2009, the Sundown SA series has been our most popular line. What better way to make a new version 2 than to upgrade everything? Using a larger, more powerful motor, Sundown Audio maintains the perfect balance of the original SA series while increasing the power handling to 1000-watts RMS. The Sundown Audio SA 10 v.2 is here
Sundown Audio SA 10 Version 2 Specs & TS:
- Xmax = 19mm one-way by 70% BL
- SA 10 v2 RMS Power = 1000-watts
- Vented magnetic gap
- Optimized high-velocity pole vent
- Innovative high-velocity vented frame spacer ring
- Black Aluminum 2.75” voice coil former for superior heat dissipation
- High-Temperature copper voice coil wire
- Large aluminum faraday ring (Magnet ID)
- Spring Loaded Terminals
- Stitched-On Double “XL” Tinsel Leads to prevent fatigue and failure
- High strength cast aluminum frame
- Optimized for small ported, sealed, & band-pass enclosures
| T/S SPECS | SAV2 10″ D2 | SAV2 10″ D4 |
|---|---|---|
| RE (Ohms) | 3.90 | 6.82 |
| FS (Hz) | 37.0810 | 36.1409 |
| VAS (L) | 10.3683 | 12.3547 |
| Qes | 0.3598 | 0.3744 |
| Qms | 3.7041 | 3.5051 |
| Qts | 0.3280 | 0.3383 |
| Le (mH) | 3.5178 | 4.4560 |
| BL (NA) | 28.3634 | 31.5270 |
| Mms (Grams) | 318.8226 | 281.6632 |
| Cms (uM/N) | 57.7815 | 68.8513 |
| Sens (dB @ 1w/1m) | 83.42 | 83.67 |
ENLCOSURE SPECIFICATIONS
| Sealed Enclosure | 0.5 cu ft |
| Ported Enclosure | 1.0 cu ft |
| Recommended Tuning | 35Hz |
| Recommended Port Area | 15 sq in |
| Displacement | |
| Depth | 6.92″ |
| Outside Diameter | 10.94″ |
| Cut-Out | 9.17″ |
